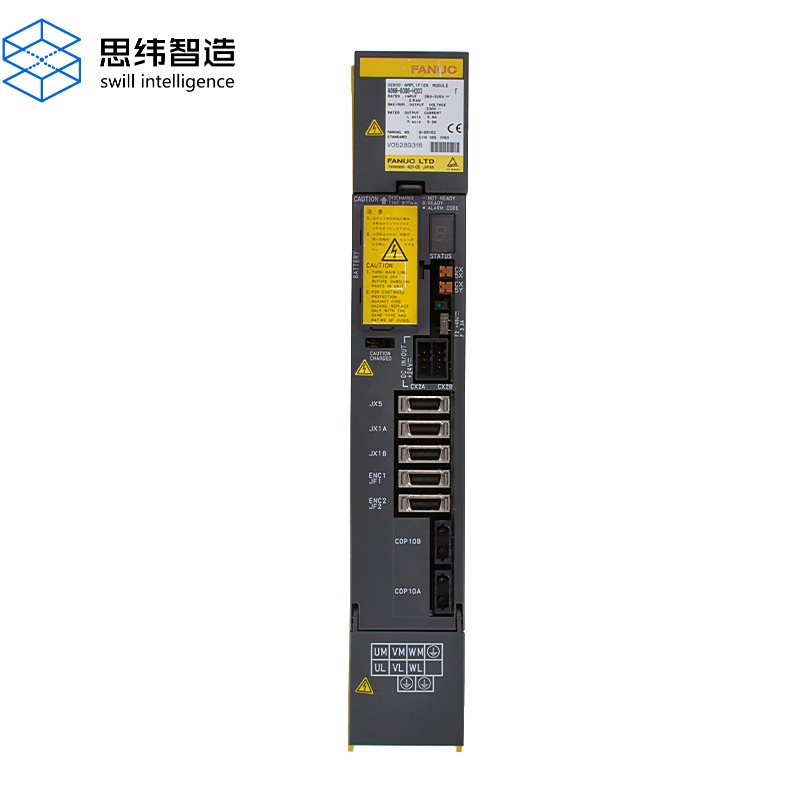

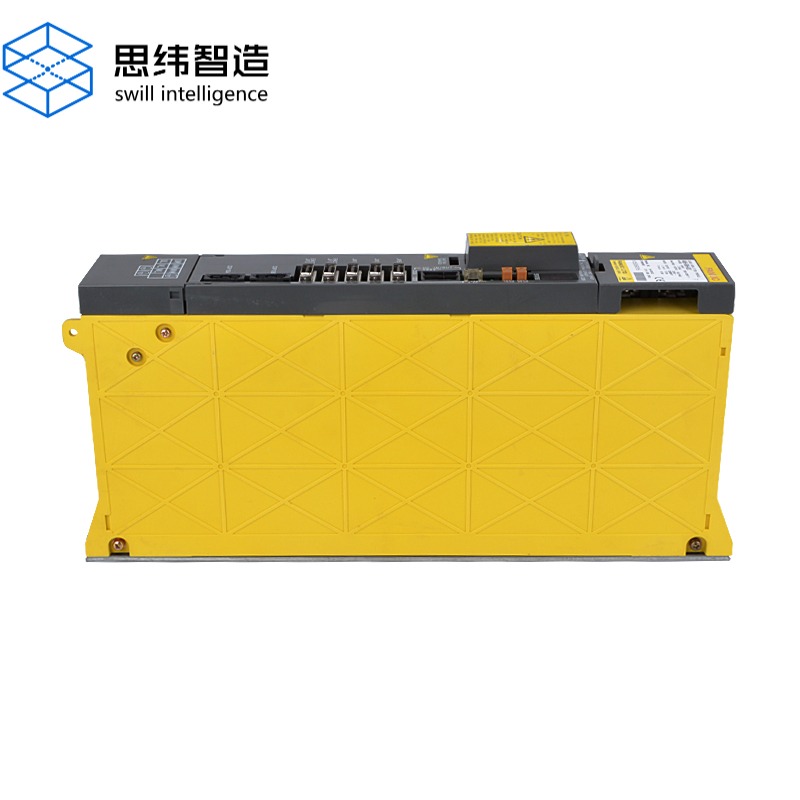

FANUC CNC Servo Drive A06B-6096-H203 Alpha Series Power Amplifier Spindle Servo Module
The FANUC A06B-6096-H203 is a high-performance Alpha Series dual-axis servo amplifier module designed for CNC machine tools. It provides precise motor control, stable spindle and axis drive performance, and reliable integration with FANUC CNC systems such as 15i/16i/18i/21i series controllers. Ideal for machining centers, lathes, and industrial automation systems requiring high-speed and high-accuracy motion control.
Product Overview
The FANUC A06B-6096-H203 is an Alpha Series servo amplifier module (SVM2-20/20) used in CNC machine tools for high-precision motion control. It is part of FANUC’s integrated servo system architecture, designed to work directly with FANUC CNC controllers through the proprietary FSSB (FANUC Serial Servo Bus) communication system.
This module is typically used to drive AC servo motors in dual-axis configurations, delivering stable torque, accurate positioning, and fast dynamic response for demanding machining operations.
It is widely applied in:
- CNC machining centers
- CNC lathes and turning machines
- Milling machines
- Automated production systems
- Industrial robotics and motion platforms
According to industry references, this model supports Alpha servo motors and is commonly used with FANUC 15i / 16i / 18i / 21i CNC control systems.
Key Features
High-Precision Servo Control
- Dual-axis servo amplifier module (SVM2-20/20)
- High-speed torque and position response
- Smooth acceleration and deceleration control
- Stable low-speed performance for precision machining
FANUC Alpha System Integration
- Designed specifically for FANUC CNC ecosystems
- Compatible with FSSB (Fiber Optic Servo Bus) communication
- Seamless integration with CNC controller and servo motors
Industrial Reliability
- Built for continuous industrial operation
- Strong resistance to vibration and electrical noise
- Long service life in harsh CNC environments
Efficient Power Control
- Optimized power conversion for servo motor driving
- Stable spindle and axis performance
- Reduced heat generation under load conditions
Compact Modular Design
- Space-saving cabinet installation
- Easy replacement and maintenance
- Designed for machine tool integration

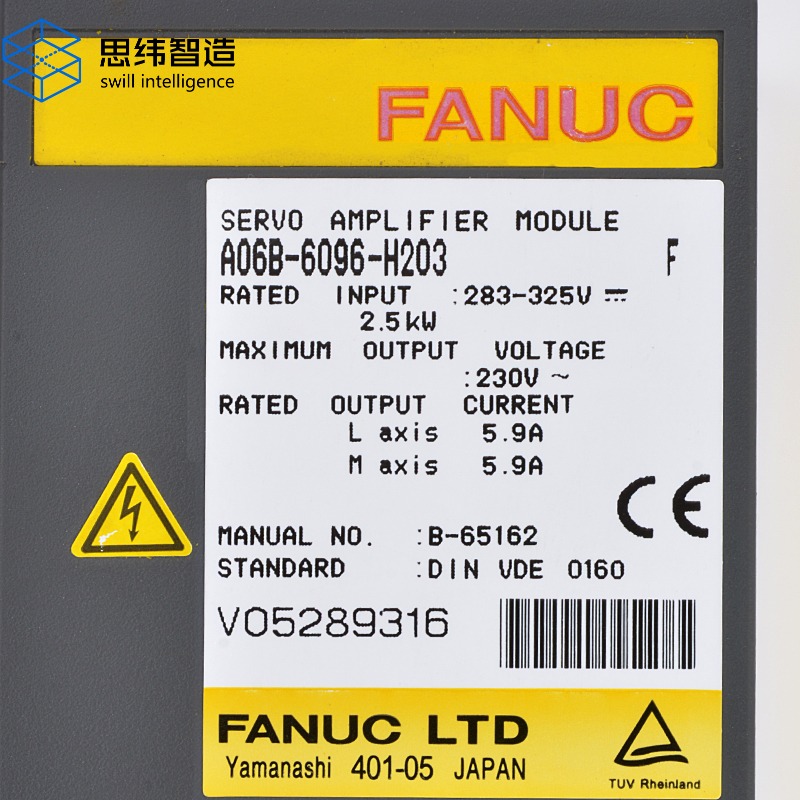

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | FANUC |
| Model | A06B-6096-H203 |
| Series | Alpha Series |
| Product Type | Servo Amplifier Module |
| Sub Model | SVM2-20/20 |
| Axis Type | Dual Axis Servo Drive |
| Input Voltage | ~283–325V AC (typical industrial supply) |
| Output | AC Servo Motor Drive |
| Communication | FSSB (FANUC Serial Servo Bus) |
| Compatible CNC | FANUC 15i / 16i / 18i / 21i Series |
| Application | CNC Axis / Spindle Control |
| Cooling | Forced Air Cooling |
| Installation | Cabinet Mounted Module |
Main Applications
The FANUC A06B-6096-H203 servo amplifier is widely used in:
- CNC machining centers
- High-speed milling machines
- Precision turning lathes
- Industrial automation production lines
- Multi-axis robotic systems
- Metal cutting and forming machines
- High-accuracy positioning systems
Advantages of FANUC A06B-6096-H203
High Machining Accuracy
Provides precise motion control essential for high-end CNC machining.
Stable Industrial Performance
Designed for continuous operation in demanding manufacturing environments.
Tight CNC Integration
Works seamlessly with FANUC CNC controllers via proprietary servo communication architecture.
Reliable Maintenance & Replacement
Widely used module with strong aftermarket support and repair availability.
Proven Industrial Standard
FANUC Alpha Series is one of the most widely adopted CNC servo platforms globally.
